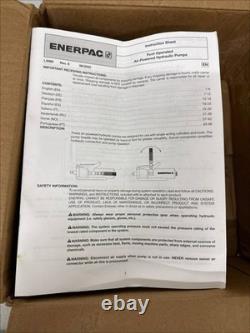

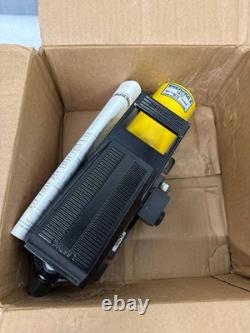

Enerpac PA-133 Air Hydraulic Pump 10000 PSI Base Mount



Enerpac PA-133 Air Hydraulic Pump 10000 PSI Base Mount. It is designed for plant maintenance, fabrication, production, vehicle repair, and other industrial applications where compressed air is the preferred or only available power source. Maximum operating pressure of 10,000 psi for heavy-duty industrial loads. Three-way control valve for advancing, holding, or releasing a single-acting hydraulic cylinder.

Single-speed design suited for applications with constantly applied load. Operated by a treadle that can be pushed by hand or foot for easy hands-free use. Can be mounted and operated in either horizontal or vertical orientation. Swivel coupling for flexible hose connection and pump positioning.

Internal pressure relief valve helps protect the pump from over-pressure conditions. Maximum Output Flow (0 psi). 40 cubic inches per minute (at 100 psi inlet pressure).

Output Flow at 10,000 psi. 8 cubic inches per minute (at 100 psi inlet pressure).

Air Consumption (100 psi inlet). 5.0 lb (2.3 kg). Dimensions (W × H × D).

6.0 x 16.0 x 16.0 inches (15.24 x 40.64 x 40.64 cm). Base mount with mounting slots. 3/8" and 1/4" NPT hydraulic and air ports.

Compressed air (no batteries or external electric motor required). Can operate horizontally or vertically. 3-way control valve for advance, hold, and release.
